| Filter Inductors | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

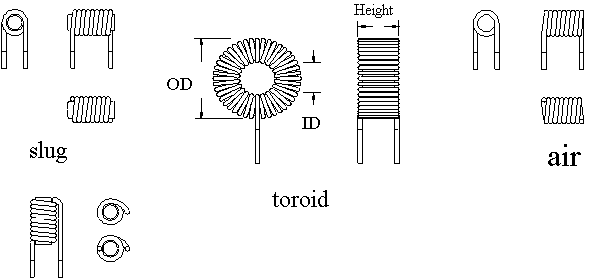

| Part Number | L μH | Current | D.C.R. Ohms | Q @ 1 KHz | Type Core | I.D. Mark | Dimensions in Inches | ||||
| Nom. | Max. | Height | O.D. | I.D. | Lead | ||||||
| HL-8120 | 0.1 | 5.0 | 10.0 | 0.005 | 0.8 | Air | None | 0.40 | 0.36 | 0.20 | 0.054 |
| HL-8169 | 0.5 | 5.0 | 10.0 | 0.005 | 0.8 | Air | None | 0.70 | 0.43 | 0.30 | 0.054 |
| HL-8121 | 10.0 | 0.5 | 1.0 | 0.050 | 1.6 | Slug | Red | 0.65 | 0.35 | ---- | 0.022 |
| HL-8122 | 7.0 | 1.0 | 2.0 | 0.027 | 2.0 | Slug | Yellow | 0.65 | 0.35 | ---- | 0.028 |
| HL-8123 | 4.5 | 2.0 | 4.0 | 0.014 | 2.5 | Slug | Green | 0.65 | 0.35 | ---- | 0.035 |
| HL-8105 | 3.0 | 3.0 | 6.0 | 0.008 | 3.2 | Slug | Blue | 0.65 | 0.40 | ---- | 0.043 |
| HL-8124 | 1.7 | 5.0 | 10.0 | 0.004 | 4.0 | Slug | Black | 0.65 | 0.40 | ---- | 0.054 |
| HL-8125 | 1.5 | 8.0 | 15.0 | 0.002 | 9.0 | Slug | white | 0.65 | 0.50 | ---- | 0.067 |
| HL-8176 | 2500.0 | 0.2 | 0.5 | 5.400 | 22.4 | Toroid | Label | 0.80 | 1.30 | 0.35 | 0.014 |
| HL-8147 | 62.0 | 0.5 | 1.0 | 0.080 | 5.0 | Toroid | Label | 0.35 | 0.65 | 0.15 | 0.022 |
| HL-8126 | 100.0 | 0.5 | 1.0 | 0.100 | 5.8 | Toroid | Label | 0.35 | 0.65 | 0.15 | 0.022 |
| HL-8134 | 250.0 | 0.5 | 0.8 | 0.200 | 6.0 | Toroid | Label | 0.35 | 0.60 | 0.19 | 0.018 |
| HL-8140 | 500.0 | 0.5 | 1.0 | 0.300 | 8.0 | Toroid | Label | 0.45 | 0.65 | ---- | 0.022 |
| HL-8130 | 750.0 | 0.5 | 0.8 | 0.400 | 7.0 | Toroid | Label | 0.35 | 0.60 | 0.12 | 0.018 |
| HL-8146 | 1000.0 | 0.5 | 0.8 | 0.500 | 6.0 | Toroid | Label | 0.40 | 0.65 | 0.05 | 0.018 |
| HL-8189 | 30.0 | 1.0 | 4.0 | 0.019 | 8.0 | Toroid | Label | 0.40 | 0.90 | 0.25 | 0.035 |
| HL-8159 | 120.0 | 1.0 | 2.0 | 0.069 | 7.7 | Toroid | Label | 0.42 | 0.65 | 0.10 | 0.028 |
| HL-8171 | 150.0 | 1.5 | 2.0 | 0.080 | 10.0 | Toroid | Label | 0.45 | 0.85 | 0.15 | 0.028 |
| HL-8127 | 15.0 | 2.0 | 4.0 | 0.015 | 6.4 | Toroid | Label | 0.37 | 0.62 | 0.10 | 0.035 |
| HL-8155 | 1000.0 | 2.0 | 3.0 | 0.250 | 14.0 | Toroid | Label | 0.75 | 1.25 | 0.25 | 0.028 |
| HL-8128 | 10.0 | 4.0 | 6.0 | 0.010 | 8.0 | Toroid | Label | 0.40 | 0.65 | 0.10 | 0.043 |
| HL-8151 | 10.0 | 5.0 | 6.0 | 0.010 | 9.0 | Toroid | Label | 0.42 | 0.85 | 0.15 | 0.043 |
| HL-8150 | 10.0 | 5.0 | 6.0 | 0.010 | 9.0 | Toroid | Label | 0.41 | 0.65 | 0.15 | 0.043 |
| HL-8152 | 10.0 | 8.0 | 10.0 | 0.006 | 13.0 | Toroid | Label | 0.45 | 0.90 | 0.15 | 0.054 |
| HL-8138 | 330.0 | 10.0 | 15.0 | 0.027 | 40.5 | Toroid | Label | 1.65 | 2.20 | 0.55 | 0.067 |
| HL-8196 | 16.0 | 20.0 | 20.0 | 0.006 | 15.0 | Toroid | Label | 0.45 | 0.90 | 0.20 | 0.054 |
| HL-8129 | 26.0 | 20.0 | 30.0 | 0.010 | 22.0 | Toroid | Label | 1.10 | 1.55 | 0.45 | 2*.067 |
| HL-8113 | 60.0 | 20.0 | 30.0 | 0.005 | 29.0 | Toroid | Label | 1.00 | 2.20 | 0.50 | 2*.067 |
| HL-8117 | 240.0 | 20.0 | 30.0 | 0.012 | 51.4 | Toroid | Label | 1.80 | 2.20 | 0.50 | 2*.067 |
| HL-8172 | 250.0 | 20.0 | 30.0 | 0.017 | 25.0 | Toroid | Label | 1.80 | 2.25 | 0.50 | 0.084 |
| HL-8230 | 55.0 | 40.0 | 70.0 | 0.004 | 39.8 | Toroid | Label | 1.80 | 2.30 | 0.60 | 2*.084 |
